概述
Y2系列三相異步電動機是我國采用新技術開發出的新系列,是Y系列電動機的升級換代產品。
Y2 系列電動機系全封閉、外扇 冷式、鼠籠型結構。具有設計新穎、造型美觀、噪聲低、效率高、轉矩高、起動性能好、結構緊湊、使用維修方便等特點。整機采用 F級絕緣,且按國際貫例的絕緣,結構評定方法設計,從而大大提高了整機安全可靠性。達到國外同類產品九十年代初期先進水平。
Y2系列電動機可廣泛應用于機床、風機、水泵、壓縮機和交通運輸、農業、食品加工等各類機械傳動設備。
使用條件
環境溫度:-15℃~40℃
海拔高度:不超過1000m
額定電壓:380V、可選220~760V之間任何電壓值
額定頻率:50Hz、60Hz
防護等級:IP54、IP55
絕緣等級: F
冷卻方式:IC411
工作方式:S1
接線方法:3kW及以下Y接法,4kW及以上△接法

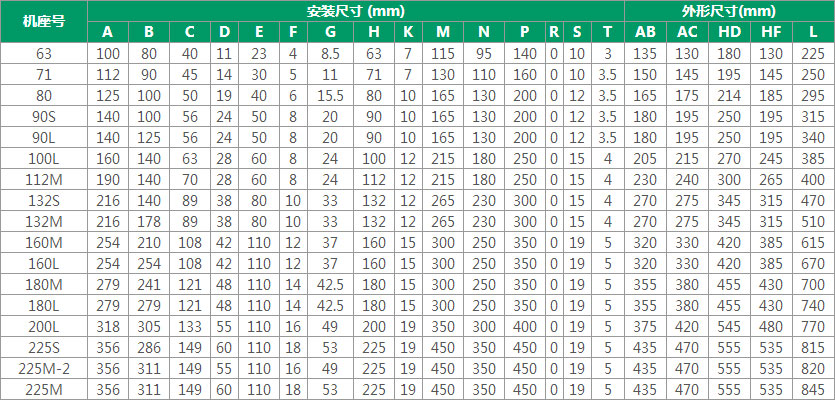

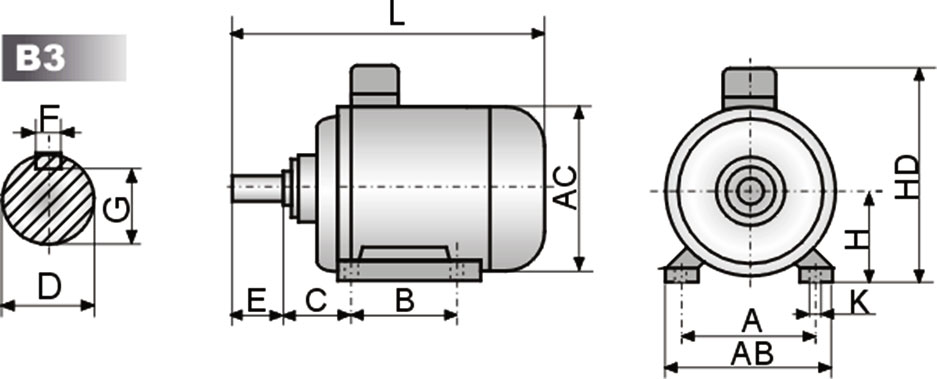

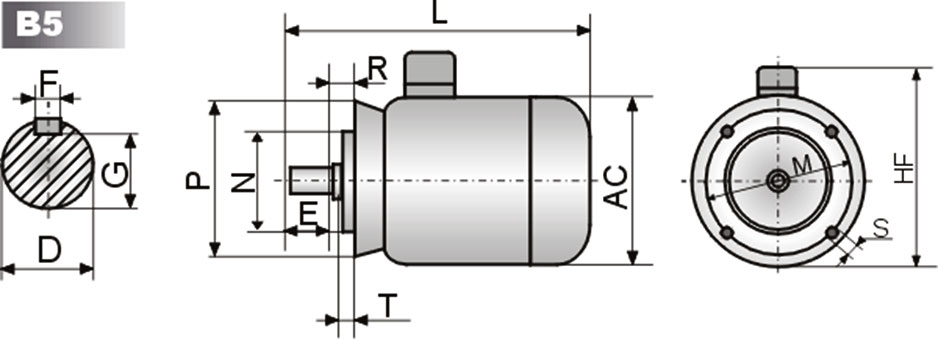

外形及安裝尺寸
技術參數
型號 | 功率 | 電流 (A) | 功率 因數 | 效率 (%) | 轉速 (r/min) |
堵轉轉矩 額定轉矩 |
堵轉電流 額定電流 |
最大轉矩 額定轉矩 |
最小轉矩 額定轉矩 |
|
kW | HP | |||||||||
Y2-631-2 | 0.18 | 0.24 | 0.53 | 0.8 | 65 | 2780 | 2.2 | 5.5 | 2.2 | 1.6 |
Y2-632-2 | 0.25 | 0.33 | 0.69 | 0.81 | 68 | 2780 | 2.2 | 5.5 | 2.2 | 1.6 |
Y2-711-2 | 0.37 | 0.5 | 0.99 | 0.81 | 70 | 2800 | 2.2 | 6.1 | 2.2 | 1.6 |
Y2-712-2 | 0.55 | 0.75 | 1.4 | 0.82 | 73 | 2800 | 2.2 | 6.1 | 2.3 | 1.6 |
Y2-801-2 | 0.75 | 1 | 1.8 | 0.83 | 75 | 2825 | 2.2 | 6.1 | 2.3 | 1.5 |
Y2-802-2 | 1.1 | 1.5 | 2.55 | 0.84 | 77 | 2825 | 2.2 | 7 | 2.3 | 1.5 |
Y2-90S-2 | 1.5 | 2 | 3.39 | 0.84 | 79 | 2840 | 2.2 | 7 | 2.3 | 1.5 |
Y2-90L-2 | 2.2 | 3 | 4.8 | 0.85 | 81 | 2840 | 2.2 | 7 | 2.3 | 1.4 |
Y2-100L-2 | 3 | 4 | 6.31 | 0.87 | 83 | 2880 | 2.2 | 7.5 | 2.3 | 1.4 |
Y2-112M-2 | 4 | 5.5 | 8.22 | 0.88 | 85 | 2890 | 2.2 | 7.5 | 2.3 | 1.4 |
Y2-132S1-2 | 5.5 | 7.5 | 11.2 | 0.88 | 86 | 2900 | 2.2 | 7.5 | 2.3 | 1.2 |
Y2-132S2-2 | 7.5 | 10 | 15.1 | 0.88 | 87 | 2900 | 2.2 | 7.5 | 2.3 | 1.2 |
Y2-160M1-2 | 11 | 15 | 21.3 | 0.89 | 88 | 2930 | 2.2 | 7.5 | 2.3 | 1.2 |
Y2-160M2-2 | 15 | 20 | 28.8 | 0.89 | 89 | 2930 | 2.2 | 7.5 | 2.3 | 1.2 |
Y2-160L-2 | 18.5 | 25 | 34.7 | 0.9 | 90 | 2930 | 2.2 | 7.5 | 2.3 | 1.1 |
Y2-180M-2 | 22 | 30 | 41 | 0.9 | 90 | 2940 | 2 | 7.5 | 2.3 | 1.1 |
Y2-200L1-2 | 30 | 40 | 55.5 | 0.9 | 91.2 | 2950 | 2 | 7.5 | 2.3 | 1.1 |
Y2-200L2-2 | 37 | 50 | 67.9 | 0.9 | 92 | 2950 | 2 | 7.5 | 2.3 | 1.1 |
Y2-225M-2 | 45 | 60 | 82.1 | 0.9 | 92.3 | 2960 | 2 | 7.5 | 2.3 | 1 |
Y2-631-4 | 0.12 | 0.16 | 0.44 | 0.72 | 57 | 1330 | 2.1 | 4.4 | 2.2 | 1.7 |
Y2-632-4 | 0.18 | 0.24 | 0.62 | 0.73 | 60 | 1330 | 2.1 | 4.4 | 2.2 | 1.7 |
Y2-711-4 | 0.25 | 0.33 | 0.79 | 0.74 | 65 | 1360 | 2.1 | 5.2 | 2.2 | 1.7 |
Y2-712-4 | 0.37 | 0.5 | 1.12 | 0.75 | 67 | 1360 | 2.1 | 5.2 | 2.2 | 1.7 |
Y2-801-4 | 0.55 | 0.75 | 1.57 | 0.75 | 71 | 1380 | 2.4 | 5.2 | 2.3 | 1.7 |
Y2-802-4 | 0.75 | 1 | 2.03 | 0.76 | 73 | 1380 | 2.3 | 6 | 2.3 | 1.6 |
Y2-90S-4 | 1.1 | 1.5 | 1.86 | 0.77 | 75 | 1390 | 2.3 | 6 | 2.3 | 1.6 |
Y2-90L-4 | 1.5 | 2 | 3.7 | 0.79 | 78 | 1390 | 2.3 | 6 | 2.3 | 1.6 |
Y2-100L1-4 | 2.2 | 3 | 5.16 | 0.81 | 80 | 1410 | 2.3 | 7 | 2.3 | 1.5 |
Y2-100L2-4 | 3 | 4 | 6.78 | 0.82 | 82 | 1410 | 2.3 | 7 | 2.3 | 1.5 |
Y2-112M-4 | 4 | 5.5 | 8.82 | 0.82 | 84 | 1435 | 2.3 | 7 | 2.3 | 1.5 |
Y2-132S-4 | 5.5 | 7.5 | 11.7 | 0.83 | 85 | 1445 | 2.3 | 7 | 2.3 | 1.4 |
Y2-132M-4 | 7.5 | 10 | 15.6 | 0.84 | 87 | 1445 | 2.3 | 7 | 2.3 | 1.4 |
Y2-160M-4 | 11 | 15 | 22.3 | 0.84 | 88 | 1450 | 2.2 | 7 | 2.3 | 1.4 |
Y2-160L-4 | 15 | 20 | 30.1 | 0.85 | 89 | 1450 | 2.2 | 7.5 | 2.3 | 1.4 |
Y2-180M-4 | 18.5 | 25 | 36.5 | 0.86 | 90.5 | 1460 | 2.2 | 7.5 | 2.3 | 1.2 |
Y2-180L-4 | 22 | 30 | 43.1 | 0.86 | 91 | 1460 | 2.2 | 7.5 | 2.3 | 1.2 |
Y2-200L-4 | 30 | 40 | 57.6 | 0.86 | 92 | 1460 | 2.2 | 7.2 | 2.3 | 1.2 |
Y2-225S-4 | 37 | 50 | 69.9 | 0.87 | 92.5 | 1470 | 2.2 | 7.2 | 2.3 | 1.2 |
Y2-225M-4 | 45 | 60 | 84.5 | 0.87 | 92.8 | 1470 | 2.2 | 7.2 | 2.3 | 1.1 |
Y2-132M1-6 | 4 | 5.5 | 9.63 | 0.76 | 82 | 960 | 2.1 | 6.5 | 2.1 | 1.3 |
Y2-132M2-6 | 5.5 | 7.5 | 12.9 | 0.77 | 84 | 960 | 2.1 | 6.5 | 2.1 | 1.3 |
Y2-160M-6 | 7.5 | 10 | 17 | 0.77 | 86 | 970 | 2 | 6.5 | 2.1 | 1.3 |
Y2-160L-6 | 11 | 15 | 24.3 | 0.78 | 87.5 | 970 | 2 | 6.5 | 2.1 | 1.2 |
Y2-180L-6 | 15 | 20 | 31.6 | 0.81 | 89 | 970 | 2 | 7 | 2.1 | 1.2 |
Y2-200L1-6 | 18.5 | 25 | 38.1 | 0.81 | 90 | 970 | 2.1 | 7 | 2.1 | 1.2 |
Y2-200L2-6 | 22 | 30 | 44.5 | 0.83 | 90 | 970 | 2.1 | 7 | 2.1 | 1.2 |
Y2-225M-6 | 30 | 40 | 58.6 | 0.84 | 91.5 | 980 | 2 | 7 | 2.1 | 1.2 |
